PowerFilm MPT15-75 Solar Module - 15.4Volts, 50mA

  • Sale
  • Regular price $19.25


The Classic Application Series offer a new opportunity to solve the old problem of limited power for wireless electronics designed for portable and remote applications. Classic Application panels are lightweight, paper thin, and durable.

Their ultra-thin profile enables them to be easily integrated into devices for solar recharging or for direct power. Panels have been specifically developed to recharge a variety of common battery sizes. These panels do not have a UV-stabilized surface, but are suitable for intermittent outdoor use.

Electrical Specifications:

Full Sun

  • Power: 770mW

  • Operating Voltage: 15.4V

  • Current: 50mA

1/4 Sun

  • Power: 173mW

  • Operating Voltage: 15.4V

  • Current: 11.3mA

All Levels

  • Average Voc: 19.0V

  • Maximum Voc: 22.2V

  • Isc: 64mA

Physical Specifications:

  • Dimensions: 253.0 x 73.0 (mm) / 9.96 x 2.87 (in)

  • Weight: 0.50oz / 14.17g

  • Thickness: 0.61mm

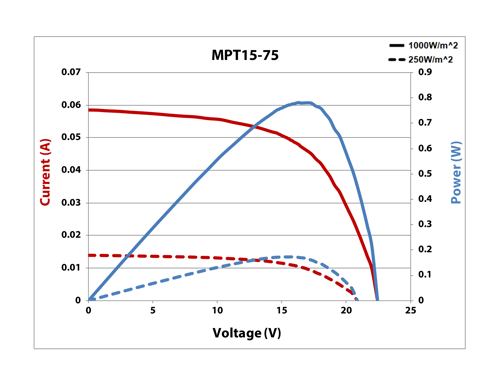

IV Curve

MPT15-75 IV Curve 25% & Full Sun
