The Classic Application Series offer a new opportunity to solve the old problem of limited power for wireless electronics designed for portable and remote applications. Classic Application panels are lightweight, paper thin, and durable.
Their ultra-thin profile enables them to be easily integrated into devices for solar recharging or for direct power. Panels have been specifically developed to recharge a variety of common battery sizes. These panels do not have a UV-stabilized surface, but are suitable for intermittent outdoor use.

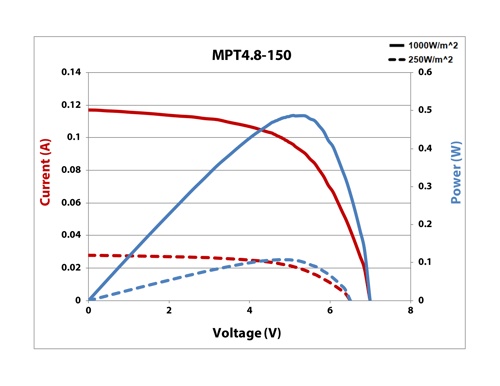

Electrical Specifications:
Full Sun
-
Power: 480mW
-
Operating Voltage: 4.8V
-
Current: 100mA
1/4 Sun
-
Power: 108mW
-
Operating Voltage: 4.8V
-
Current: 22.5mA
All Levels
-
Average Voc: 6.4V
-
Maximum Voc: 7.4V
-
Isc: 128mA
Physical Specifications:
-
Dimensions: 94.0 x 146.0 (mm) / 3.70 x 5.75 (in)
-
Weight: 0.13oz / 3.75g
-
Thickness: 0.22mm
