SGF-1200 Solar Panel - 20 Watt For 12 Volt Charging

  • Sale
  • Regular price $99.99


This 20W 12V Monocrystalline High-efficiency Solar Panel is ideal for bringing power to small electronics while away from the grid. It is commonly used in RV, marine, gate opener, and many other small applications.

Key Features

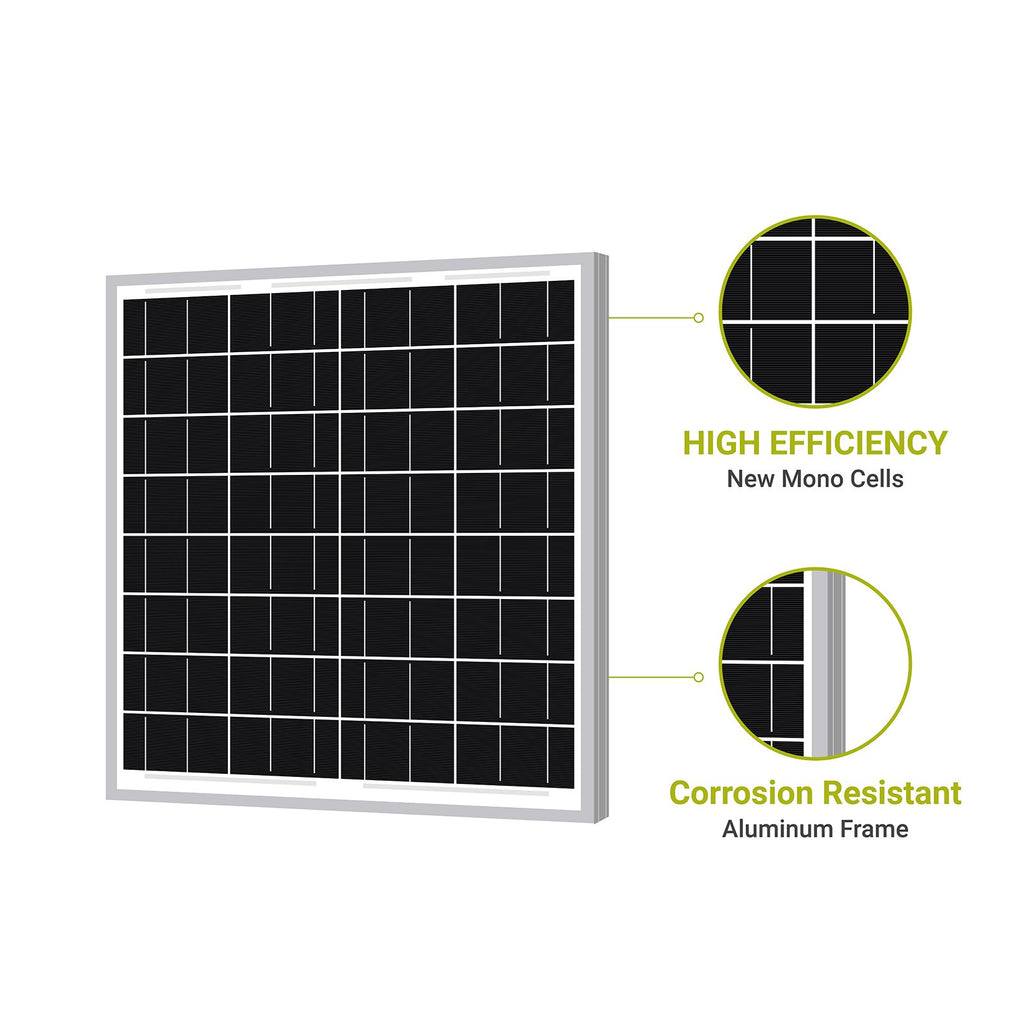

  • 20W/12V monocrystalline high-efficiency solar panel
  • High-performance cells encapsulated in EVA (ethylene-vinyl-acetate)
  • Nominal 12VDC for standard output

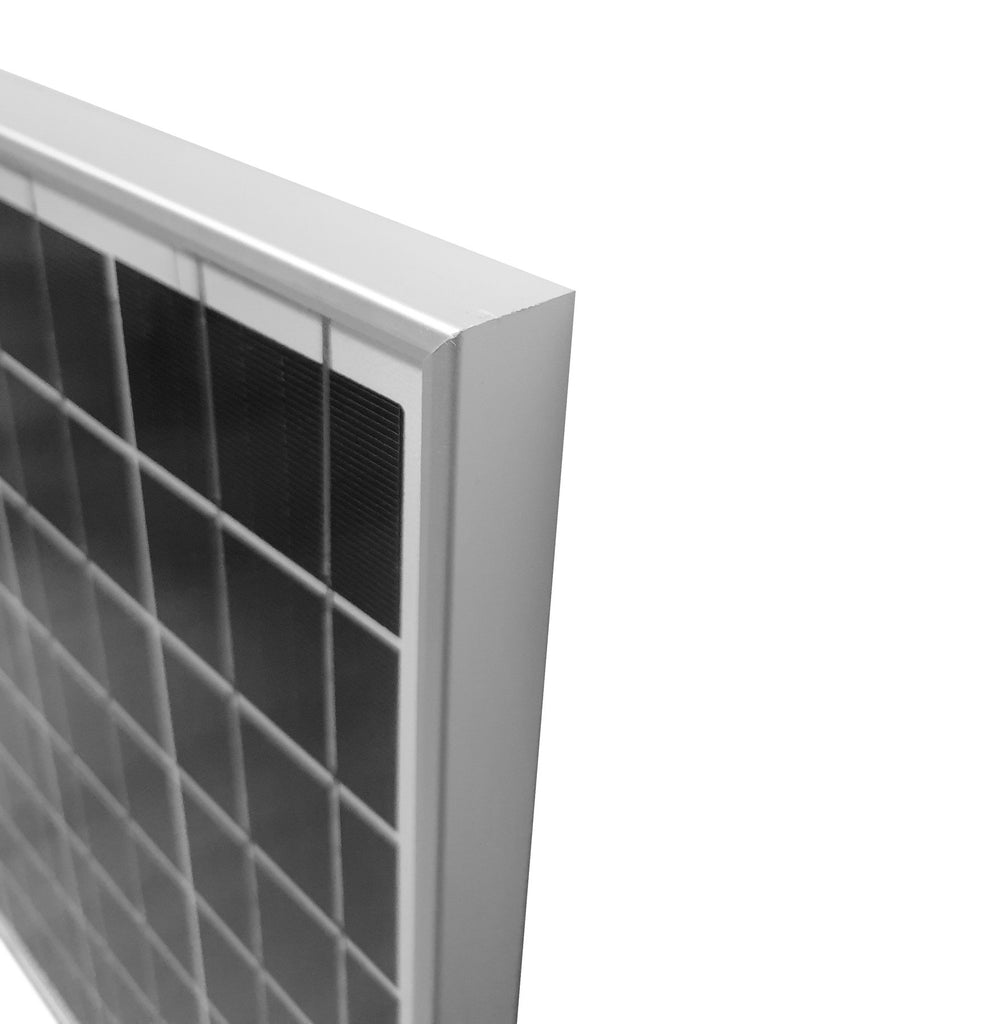

  • Heavy-duty anodized frame with pre-drilled holes for mounting
  • Rugged design to withstand high winds (2400Pa), hail and snow load (5400Pa)
  • High-transparent, low iron tempered glass
  • Durable TPT back sheet - dissipates heat to insure better panel performance and lifespan
  • Pre-attached 8ft bare wire leads

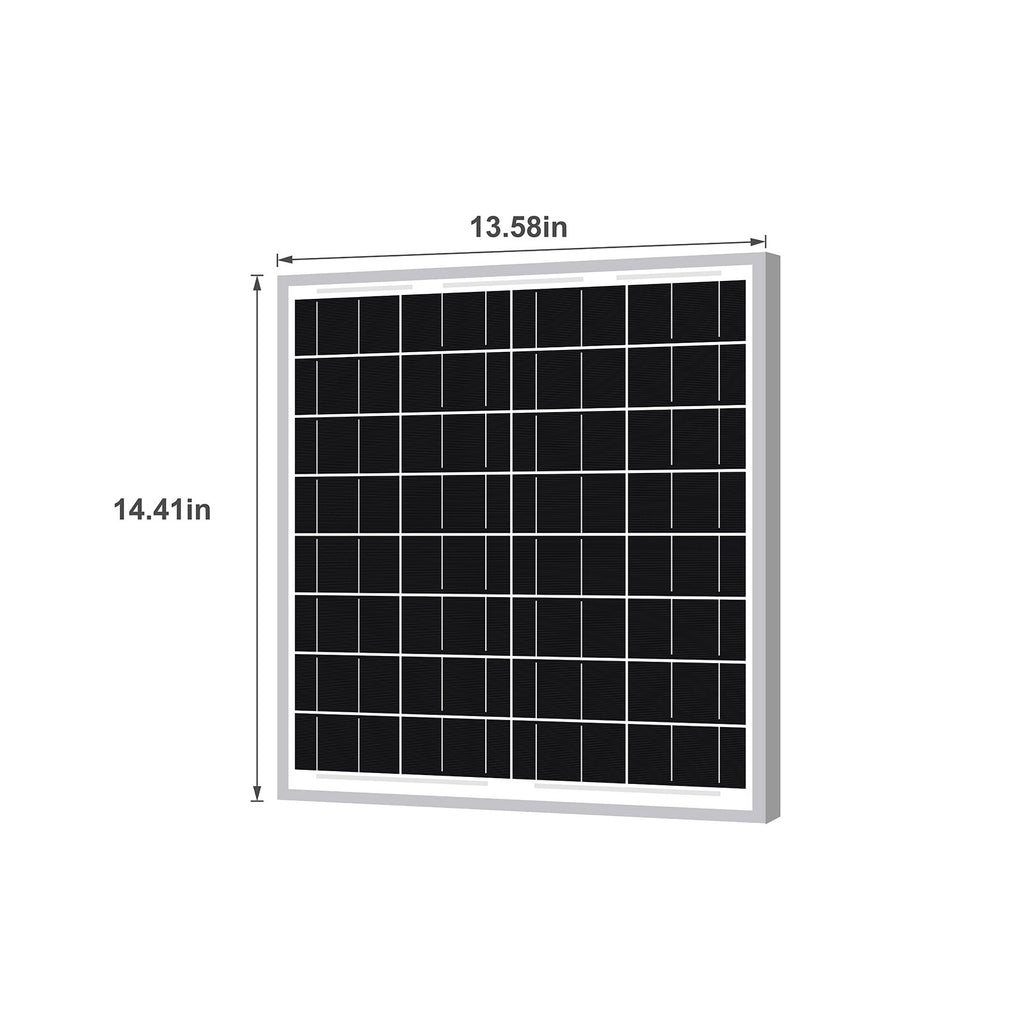

  • Product dimensions: 366 x 340 x 23mm (14.41 x 13.39 x 0.91 in)
  • Compatible mounting bracket (sold separately): SGF-L-Bracket

Warranty

  • 2 year limited material and workmanship warranty
  • 10 year 90% output warranty
  • 25 year 80% output warranty

Technical Specifications

Maximum power (Pmax)

20W

Voltage at Pmax (Vmp)

17.20V

Current at Pmax (Imp)

1.16A

Open-circuit voltage (Voc)

20.47V

Short-circuit current (Isc)

1.23A

Temperature coefficient of Voc

-(80±10)mV/°C

Temperature coefficient of Isc

(0.065±0.015)%/ °C

Temperature coefficient of power

-(0.5±0.05)%/ °C

NOCT (Air 20°C; Sun 0.8kW/m² wind 1m/s)

47±2°C

Operating temperature

-40°C to 85°C

Maximum system voltage

1000V DC

Power tolerance

± 3%
